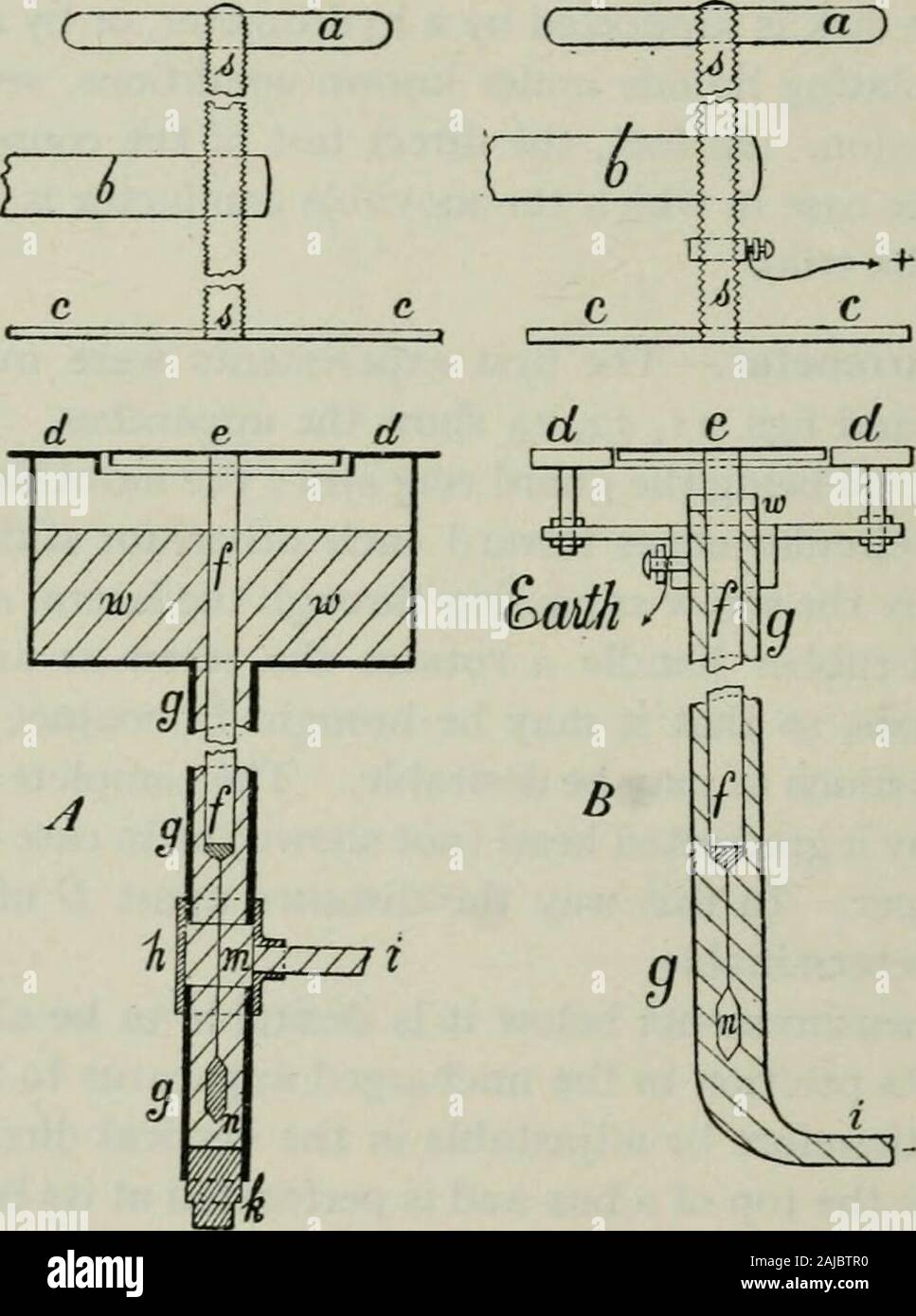

The diffusion of gases through liquids and allied experiments . of measurement presently to be given will depend upon thispossibility. 39 40 THE DIFFUSION OF GASES THROUGH To keep the water level at the proper height or to raise or lower it by adefinite amount, the screw pump in fig. 13 is available. This consistsessentially of a thick screw S playing into the brass tube cc, which is closedat the top by the stuffing box a compressing the ring of soft material bb.The bottom of the tube cc ends in the tubulure i, to be joined by appro-priate tubing with the corresponding tubulure i in fig. 11 a.
