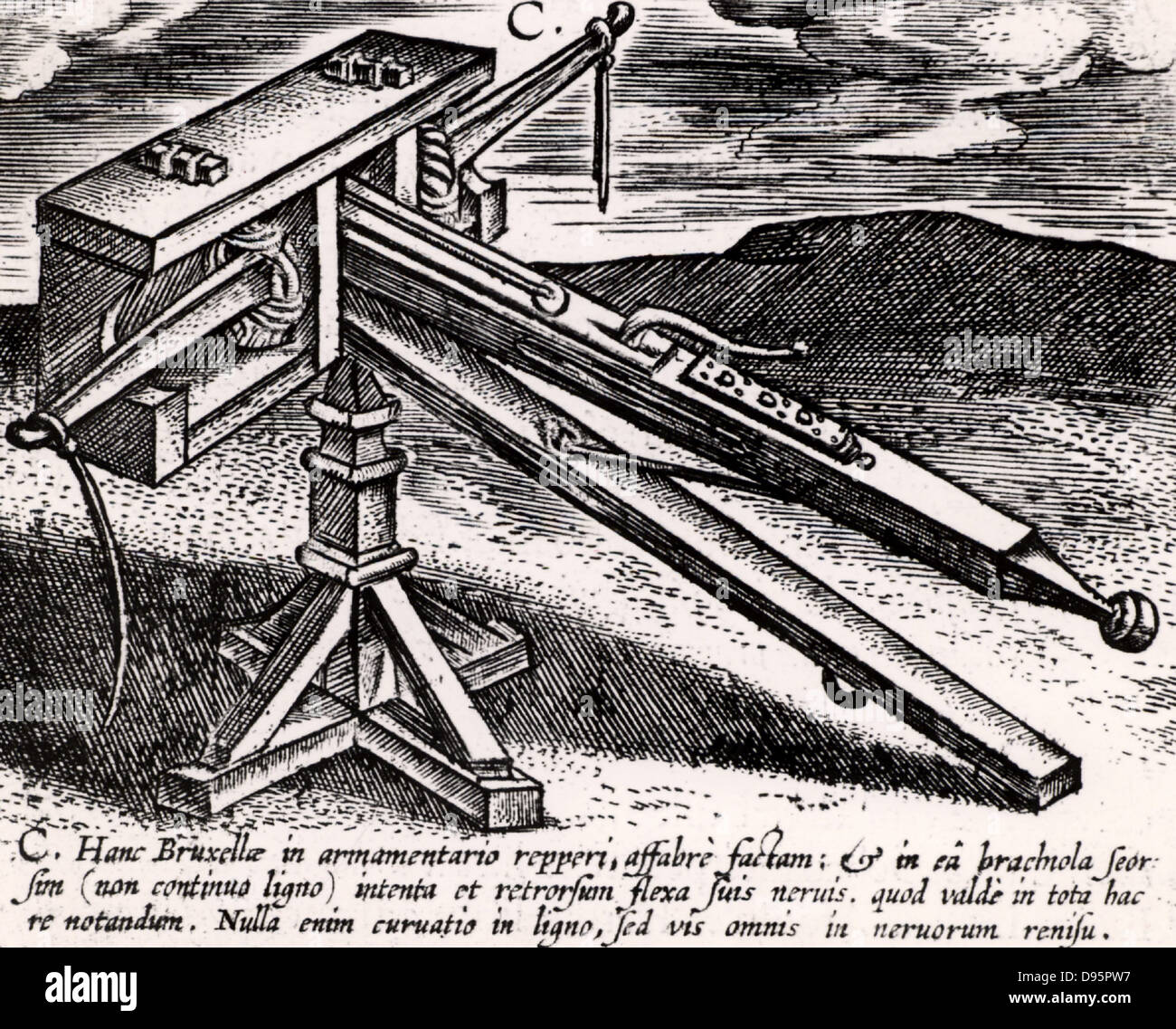

Mechanical crossbow on stand (euthytonon) attributed to Philo of Byzantium (active 150-100 BC). When arms CC wound back against skeins or sinews, the ends of ropes, here shown hanging down from ends of arms, were connected to hook, so holding arms back. Tension was increased by a ratchet, a large arrow was placed on front of arm and fired by releasing the rope. From 'Poliorceticon sive de machinis tormentis telis' by Justus Lipsius (Joost Lips) (Antwerp, 1605). Engraving.

Mechanical crossbow on stand (euthytonon) attributed to Philo of Byzantium (active 150-100 BC).  When arms CC wound back against skeins or sinews, the ends of ropes, here shown hanging down from ends of arms, were connected to hook, so holding arms back. Tension was increased by a ratchet, a large arrow was placed on front of arm and fired by releasing the  rope.  From 'Poliorceticon sive de machinis tormentis telis' by Justus Lipsius (Joost Lips) (Antwerp, 1605). Engraving. Stock Photo
Preview

Image details

Contributor:

World History Archive / Alamy Stock Photo

Image ID:

D95PW7

File size:

83 MB (4.1 MB Compressed download)

Releases:

Model - no | Property - noDo I need a release?

Dimensions:

6000 x 4833 px | 50.8 x 40.9 cm | 20 x 16.1 inches | 300dpi

More information:

This image could have imperfections as it’s either historical or reportage.

Mechanical crossbow on stand (euthytonon) attributed to Philo of Byzantium (active 150-100 BC). When arms CC wound back against skeins or sinews, the ends of ropes, here shown hanging down from ends of arms, were connected to hook, so holding arms back. Tension was increased by a ratchet, a large arrow was placed on front of arm and fired by releasing the rope. From 'Poliorceticon sive de machinis tormentis telis' by Justus Lipsius (Joost Lips) (Antwerp, 1605). Engraving.
