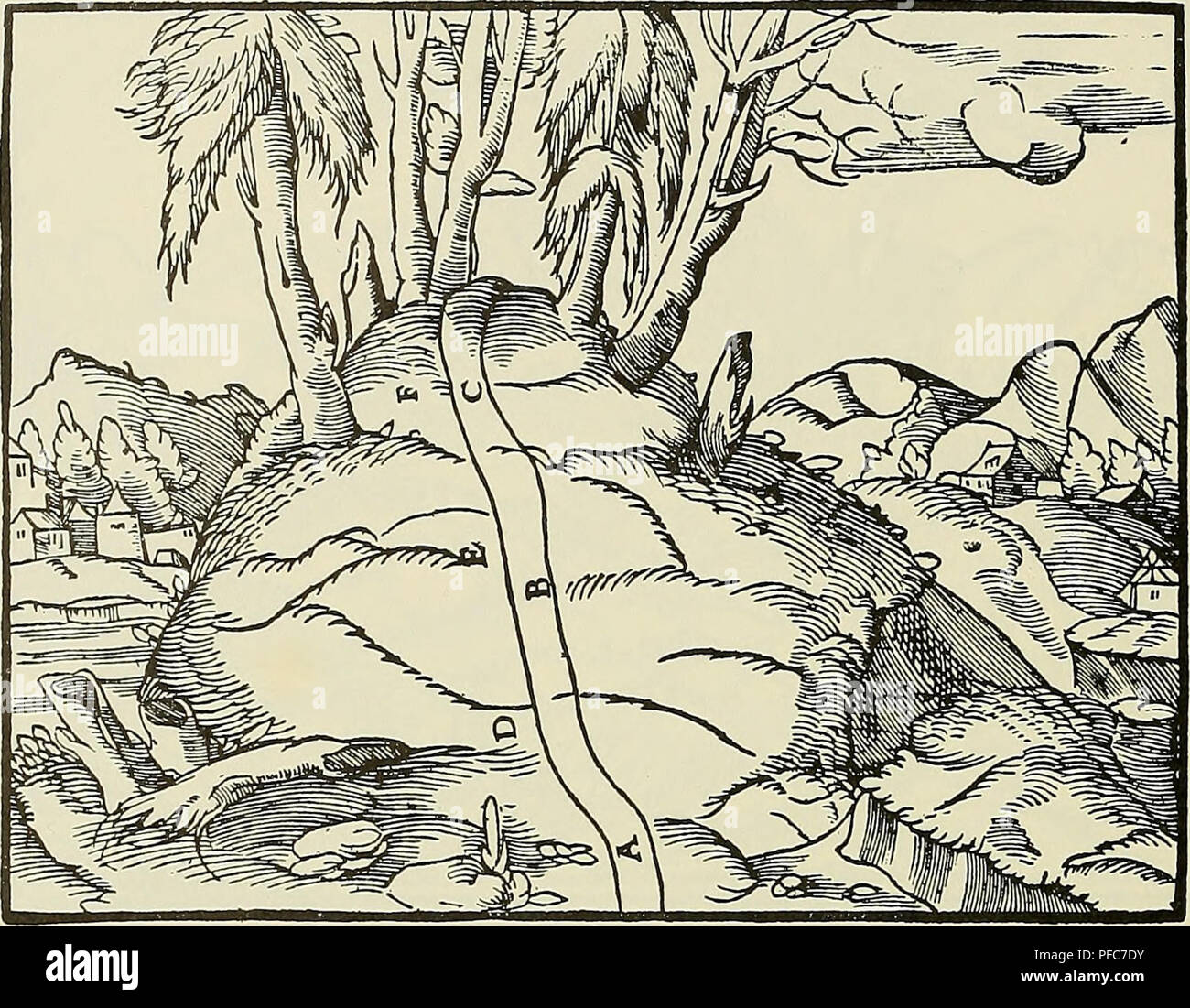

. De re metallica. Metallurgy; Mineral industries. 56 BOOK III. Others, on the contrary, run from north to south.. A, B, C—Vein. D, E, F—Seams in the Rocks. The seams in the rocks indicate to us whether a vein runs from the east or from the west. For instance, if the rock seams incline toward the westward as they descend into the earth, the vein is said to run from east to west; if they incline toward the east, the vein is said to run from west to east; in a similar manner, we determine from the rock seams whether the veins run north or south. Now miners divide each quarter of the earth into s

. De re metallica. Metallurgy; Mineral industries. 56 BOOK III. Others, on the contrary, run from north to south.. A, B, C—Vein. D, E, F—Seams in the Rocks. The seams in the rocks indicate to us whether a vein runs from the east or from the west. For instance, if the rock seams incline toward the westward as they descend into the earth, the vein is said to run from east to west; if they incline toward the east, the vein is said to run from west to east; in a similar manner, we determine from the rock seams whether the veins run north or south. Now miners divide each quarter of the earth into s Stock Photo
Preview

Image details

Contributor:

Central Historic Books / Alamy Stock Photo

Image ID:

PFC7DY

File size:

7.1 MB (581.1 KB Compressed download)

Releases:

Model - no | Property - noDo I need a release?

Dimensions:

1792 x 1394 px | 30.3 x 23.6 cm | 11.9 x 9.3 inches | 150dpi

More information:

This image is a public domain image, which means either that copyright has expired in the image or the copyright holder has waived their copyright. Alamy charges you a fee for access to the high resolution copy of the image.

This image could have imperfections as it’s either historical or reportage.

. De re metallica. Metallurgy; Mineral industries. 56 BOOK III. Others, on the contrary, run from north to south.. A, B, C—Vein. D, E, F—Seams in the Rocks. The seams in the rocks indicate to us whether a vein runs from the east or from the west. For instance, if the rock seams incline toward the westward as they descend into the earth, the vein is said to run from east to west; if they incline toward the east, the vein is said to run from west to east; in a similar manner, we determine from the rock seams whether the veins run north or south. Now miners divide each quarter of the earth into six divisions ; and by this method they apportion the earth into twenty-four directions, which they divide into two parts of twelve each.. The instrument which indicates these directions is thus constructed. First a circle is made; then at equal intervals on one half portion of it right through to the other, twelve straight Hues called by the Greeks Sianirpot, and in the Latin dimetientes, are drawn through a central point which the Greeks call Khrpov, so that the circle is thus divided into twenty-four divisions, all being of an equal size. Then, within the circle are inscribed three other circles, the outer- most of which has cross-lines dividing it into twenty-four equal parts ; the space between it and the next circle contains two sets of twelve numbers, inscribed on the lines called " diameters "; while within the innermost circle it is hoUowed out to contain a magnetic needle*. The needle hes directly 'The endeavour to discover the origin of the compass with the Chinese, Arabs, or other Orientals having now generally ceased, together with the idea that the knowledge of the lodestone involved any acquaintance with the compass, it is permissible to take a rational. Please note that these images are extracted from scanned page images that may have been digitally enhanced for readability - coloration and appearance of these illustrations may not perfectly resembl
